x제품 상세 정보
| 곡선 | DAC、AVG、TCG、B스캔、AWS | 이득 | 0-130dB |
|---|---|---|---|
| 보정 | 자동 교정、자동 이득 | 메모리 | 1000A 그래프의 빅메모리 |
| 배터리 | 리튬 배터리, 최대 12시간까지 연속 작동 가능 | ||
| 강조하다 | ultrasonic flaw detectors,ultrasonic flaw detection |
||
제품 설명

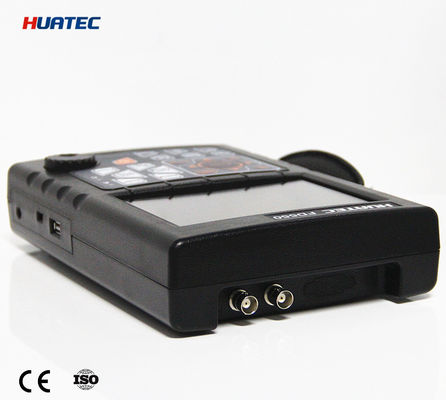

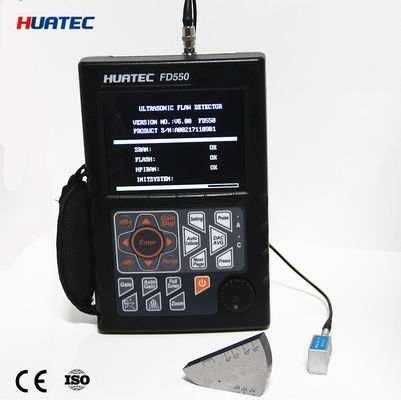

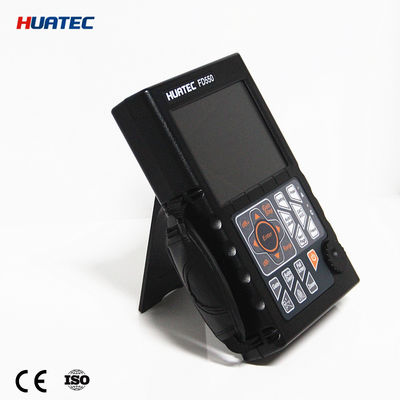

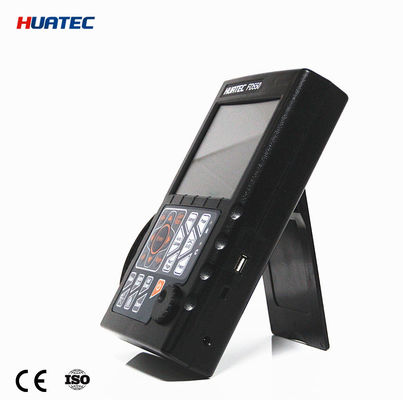

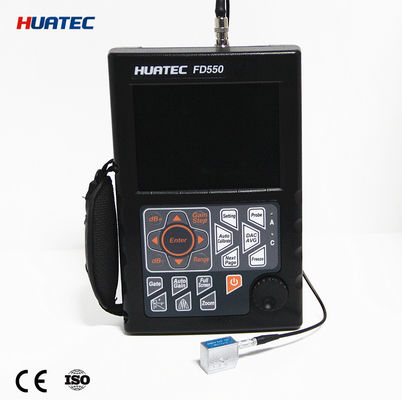

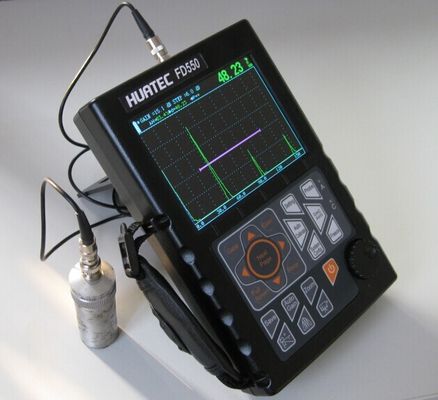

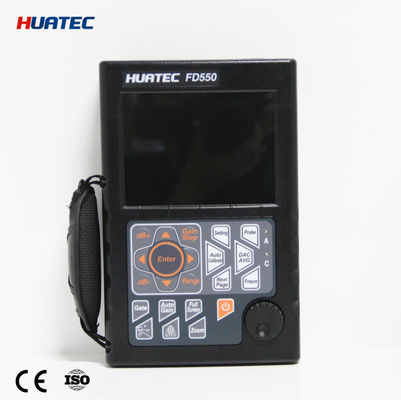

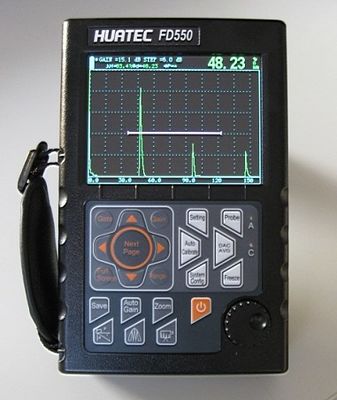

Digital Ultrasonic Flaw Detector High-speed 0dB - 130dB With Low Noise
Features:
Automated calibration,Automated gain, 0-130dB gain
DAC,AVG,TCG,B scan,AWS
High-speed capture and very low noise
Solid metal housing,water / oil proof,dust proof
High contrast viewing of the waveform from bright

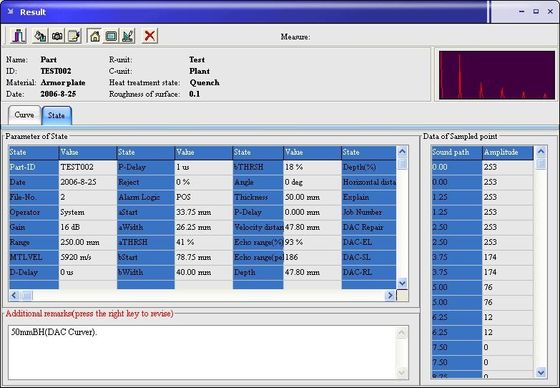

Powerful pc software and reports can be export to excel
Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；
Automated switch three staff gauge ((Depth d,level p,distance s)；
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；

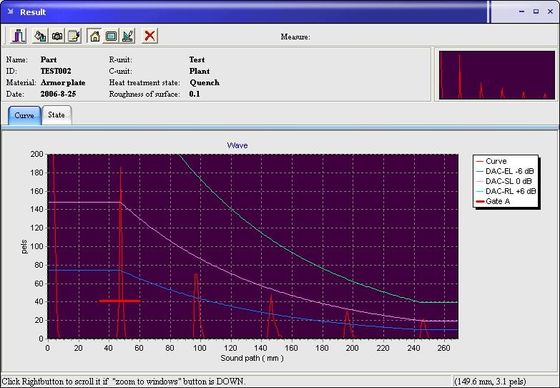

Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
6dB DAC functions;
500 independence setup, any criterion can be input freely, we can work in the scene without test block；
Big memory of 1000 A graph
Automated gain and gain scan;
Peak Hold and Peak Memory；
B scan;
AWS D1.1
Automated make video of test process and play; use upan,the length of video is unlimited.

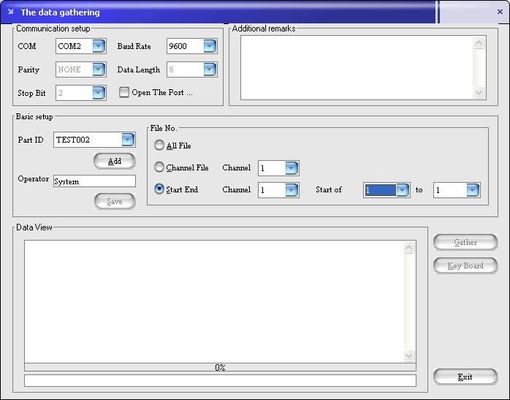

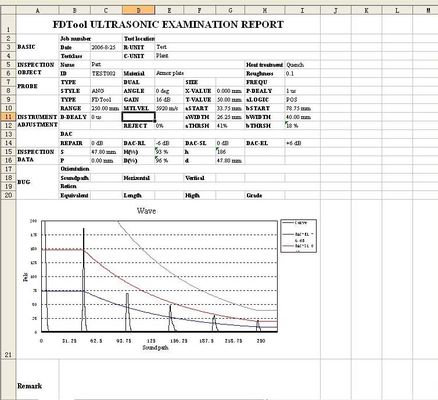

Powerful pc software and reports can be export to excel;
Li battery, continue working time up to 12 hours;
The embeded software can be online updated；
Other assistant function
Display freeze;
Automated echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Electronic clock calendar ;
Two gates setting and alarm indication;
Gate and DAC alarm;
Specifications
|
Title |
Parameter |
Title |
Parameter |
|
Measuring Range(mm) |
0 ～ 10000 |
Measurement Mode |
Single,Dual,Thru |
|
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
|
Horizontal Linearity Error |
≤0.1% |
Pulse Displacement(μs) |
-20 ～ +3400 |
|
Sensitivity Leavings |
≥62dB |
Zero(μs) |
0.0 ～ 99.99 |
|
Dynamic range |
≥32dB |
Port Type |
BNC(Q9) |
|
Resolving Power |
≥36dB |
Operating Temperature (℃) |
-20～50 |
|
Frequency Range(MHz) |
0.5 ～ 20 |
H×W×D(mm) |
240×156×48 |
|
Gain(dB) |
0 ～ 130 |
Weight(kg) |
1.0(with battery) |
|
Material Velocity(m/s) |
1000 ～ 15000 |
|
|
|
Standard Delivery: Digital Ultrasonic Flaw Detector Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Probe connection cable (BNC to Lemo 01)
Instruction manual
Carrying case
Additional Accessories:
Data managing software for digital ultrasonic flaw detector
Data managing cables RS232 for digtial ultrasonic flaw detector
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 01)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
|
Model guide:
|
Title |
FD510 |
FD520 |
FD550 |
|
Measuring Range |
0-6000mm |
0-10000mm |
0-10000mm |
|
Material Velocity(m/s) |
1000-15000 |
1000-15000 |
1000-15000 |
|
Gain(dB) |
110dB |
120dB |
130dB |
|
Frequency Range(MHz) |
0.5-15M |
0.5-15M |
0.5-20M |
|
Memory |
500 |
1000 |
1000 |
|
independence setup |
100 |
500 |
500 |
|
sz dB,ф |
★ |
★ |
★ |
|
Peak Hold and Peak Memory |
★ |
★ |
★ |
|
B scan |
X |
★ |
★ |
|
DAC |
★ |
★ |
★ |
|
AVG |
★ |
★ |
★ |
|
TCG |
X |
★ |
★ |
|
STANDARD(13 countries standard in-built) |
★ |
★ |
★ |
|
Automated calibration( IIW ) |
★ |
★ |
★ |
|
Automated calibration(two hole ) |
X |
X |
★ |
|
6dB DAC |
X |
★ |
★ |
|
make video |
★ |
unlimited |
unlimited |
|
pc software |
★ |
★ |
★ |
|
updated online |
★ |
★ |
★ |
|
curved surface correction |
★ |
★ |
★ |
|
AWS |
★ |
★ |
★ |
|
Pulse energy |
★ |
★ |
★ |
|
Pulse width |
★ |
★ |
★ |
|
Gate alarm |
★ |
★ |
★ |
|
DAC alarm |
★ |
★ |
★ |
|
continue working time |
9 hours |
12 hours |
12 hours |
|
Port Type |
BNC |
BNC |
BNC |
|
Overall dimension (mm) |
238×160×48 |
238×160×48 |
238×160×48 |
|
Weight (kg) |
1.0 |
1.0 |
1.0 |
