x제품 상세 정보
| 경도 스케일 | HL, HB, HRB, HRC, HRA, HV, HS | 메모리 | 48～600그룹(충격회수: 32～1) |
|---|---|---|---|
| 측정 범위 | HLD(170～960) | 표준 충격 장치 | D |
| 선택 가능한 충격 장치 | DC/D+15/G/C/DL | 힘 | AA 배터리 |
| 작동 온도 | 0~40C | 윤곽치수 | 152×84×34mm(본체) |
| 무게 | 0.3kg (본체) | 제품 이름 | 휴대용 경도계 |
| 지지 링 | 성형된 재료에 대한 지지 링 | ||
| 강조하다 | aa battery portable hardness tester,cylindrical spherical portable hardness tester,durometer portable metal hardness tester |
||
제품 설명

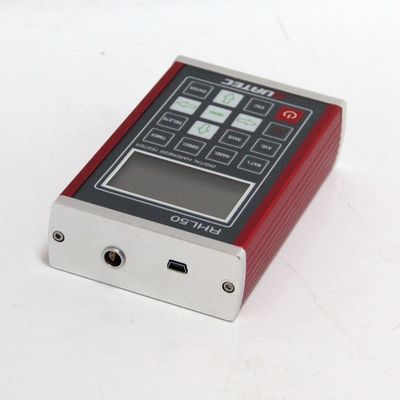

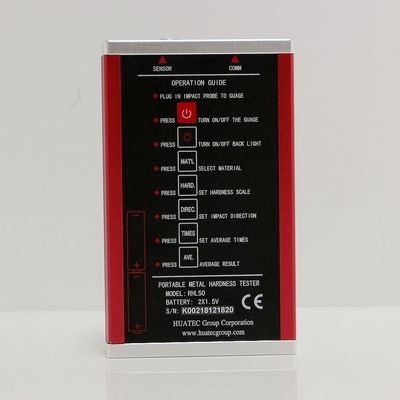

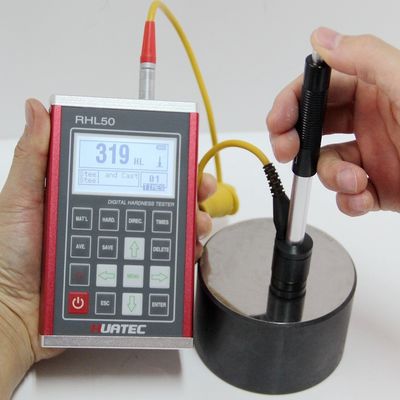

Cylindrical Spherical Outside And Inside Surface Portable Hardness Tester. Metal Durometer Hardness Tester Portable
Main Advantages
- Large screen (128×64 dot matrix LCD), showing all functions and parameters.
- Can test at any direction
- Big measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales Covered common scales (HV, HB, HRC, HRB, HRA, HS).
- Seven impact devices are available for special application. Automatically identify the type of impact devices.
- Big capacity memory could store 600 groups (Relative to average times32～1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
- Upper and lower value limit can be preset. It will alarm automatically when the result value exceeding the limit.
- Battery indicates the rest capacity of the battery and the charge status.
- User calibration function for special material calibration.
- Auto power off function
- Excellent after-sale service system for high quality products---two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.
- Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability.
- With USB or RS232 interface, convenient to connect with PC.
- Printer can be separated from main unit and copies of testing result can be printed as required.
- Narrow testing space needed.
- 14 kinds of supporting rings for shaped material testing, such as Cylindrical & Spherical Outside And Inside Surface
Main Application
- Die cavity of molds
- Bearings and other parts
- Failure analysis of pressure vessel, steam generator and other equipment
- Heavy work piece
- The installed machinery and permanently assembled parts
- Testing surface of a small hollow space
- Material identification in the warehouse of metallic materials
- Rapid testing in large range and multi-measuring areas for large-scale work piece.
Specifications of hardness tester RHL50
Hardness scale HL, HB, HRB, HRC, HRA, HV, HS
Memory 48～600 groups (impact times: 32～1)
Measuring range HLD(170～960)See below table 1 and table 2
Accuracy ±6HLD (760±30HLD) error of displayed value
6HLD (760±30HLD) repeatability of displayed value
Standard Impact Device D
Optional Impact Devices DC/D+15/G/C/DL
Max. Workpiece Hardness 996HV(For Impact Devices D/DC/DL/D+15/C)
646HB(For Impact Device G)
Min. Radius of Workpiece (convex/concave) Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece weight 2~5kg on stable support
0.05~2kg with compact coupling
Min. Workpiece thickness 5mm (Impact Devices D/DC/DL/D+15)
1mm (Impact Device C)
10mm (Impact Device G)
Min. thickness of hardened surface 0.8mm
Power AA battery
Continuous Working time approx. 100 h (no back light off)
Charging time 2-3.5 h
Operating temperature 0~40℃
Relative humidity ≤90%
Overall dimensions 152×84×34mm (main unit)
Weight 0.3kg (main unit)
Standard delivery of portable hardness tester RHL50
●Main unit RHL50
●Impact Device type D
●Test block with HLD value
●Charger
●Test block with HLD value
●Charger
●Nylon brush
●Small supporting ring
●DataView Software
●USB&RS232 Communication cable
●Calibration Certificate
●Instruction manual
●Calibration Certificate
●Instruction manual
●Warranty card
●Carrying case
Optional accessories of portable hardness tester RHL50
●Optional Impact Devices DC/D+15/G/C/DL
●Normal and special type support rings (14pcs)
●Normal and special type support rings (14pcs)
●Other test block (High, medium and low value))
●Printer
●Impact body
●Impact ball tip
●Tools for changing the ball tip
Testing range see table 1 and table 2.
Table 1
|
Material
|
Hardness method
|
Impact device
|
|||||
|
D/DC
|
D+15
|
C
|
G
|
E
|
DL
|
||
|
Steel and cast steel
|
HRC
|
17.9～68.5
|
19.3～67.9
|
20.0～69.5
|
|
22.4～70.7
|
20.6～68.2
|
|
HRB
|
59.6～99.6
|
|
|
47.7～99.9
|
|
37.0～99.9
|
|
|
HRA
|
59.1~85.8
|
|
|
|
61.7～88.0
|
|
|
|
HB
|
127～651
|
80～638
|
80～683
|
90～646
|
83～663
|
81～646
|
|
|
HV
|
83～976
|
80～937
|
80～996
|
|
84～1042
|
80～950
|
|
|
HS
|
32.2～99.5
|
33.3～99.3
|
31.8～102.1
|
|
35.8～102.6
|
30.6～96.8
|
|
|
Hammered steel
|
HB
|
143~650
|
|
|
|
|
|
|
Cold work tool steel
|
HRC
|
20.4～67.1
|
19.8～68.2
|
20.7～68.2
|
|
22.6～70.2
|
|
|
HV
|
80～898
|
80～935
|
100～941
|
|
82～1009
|
|
|
|
Stainless steel
|
HRB
|
46.5～101.7
|
|
|
|
|
|
|
HB
|
85～655
|
|
|
|
|
|
|
|
HV
|
85～802
|
|
|
|
|
|
|
|
Gray cast iron
|
HRC
|
|
|
|
|
|
|
|
HB
|
93～334
|
|
|
92～326
|
|
|
|
|
HV
|
|
|
|
|
|
|
|
|
Nodular cast iron
|
HRC
|
|
|
|
|
|
|
|
HB
|
131～387
|
|
|
127～364
|
|
|
|
|
HV
|
|
|
|
|
|
|
|
|
Cast aluminum
alloys
|
HB
|
19～164
|
|
23～210
|
32～168
|
|
|
|
HRB
|
23.8～84.6
|
|
22.7～85.0
|
23.8～85.5
|
|
|
|
|
Brass(copper-zinc alloys)
|
HB
|
40～173
|
|
|
|
|
|
|
HRB
|
13.5～95.3
|
|
|
|
|
|
|
|
Bronze (copper-aluminum/copper-tin alloys)
|
HB
|
60～290
|
|
|
|
|
|
|
Wrought copper
alloys
|
HB
|
45～315
|
|
|
|
|
|
Table 2
|
No.
|
Material
|
HLD
|
Strength σb(Mpa)
|
|
1
|
Mild steel
|
350～522
|
374～780
|
|
2
|
High-carbon steel
|
500～710
|
737～1670
|
|
3
|
Cr steel
|
500～730
|
707～1829
|
|
4
|
Cr-V steel
|
500～750
|
704～1980
|
|
5
|
Cr-Ni steel
|
500～750
|
763～2007
|
|
6
|
Cr-Mo steel
|
500～738
|
721～1875
|
|
7
|
Cr-Ni-Mo steel
|
540～738
|
844～1933
|
|
8
|
Cr-Mn-Si steel
|
500～750
|
755～1993
|
|
9
|
Super strength steel
|
630～800
|
1180～2652
|
|
10
|
Stainless steel
|
500～710
|
703～1676
|
Function:
On-line measuring management
Various function keys of data test, store, read, delete, clear, print, input and output to excel etc.
PC Software sample
Key words:Hardness Tester, Leeb Hardness Tester, Portable Hardness Tester, Portable Hand Held Leebs Metal Hardness Testers, Portable, Hardness Testers, hardness testing equipment, hardness testing machine, ndt, non destructive testing, ndt testing, impact device, Leebs, ASTM Standards, HRC, HRB, HRA, HB, HV, HS, HLD, hardness values, DIN 53505, ASTM D2240, ISO 7619
